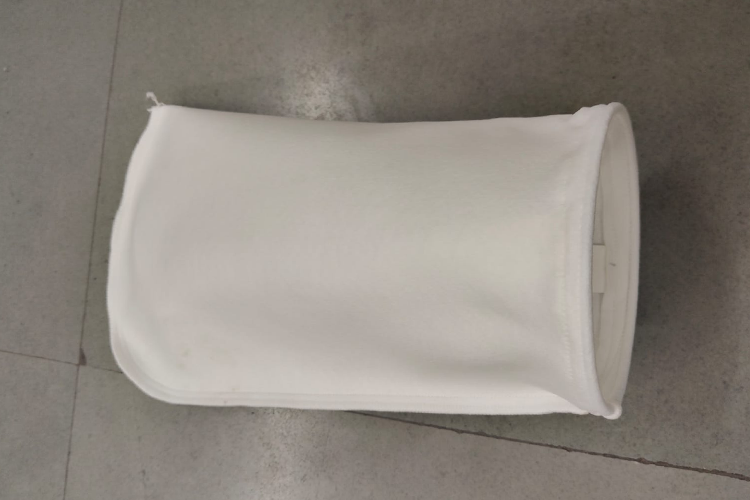

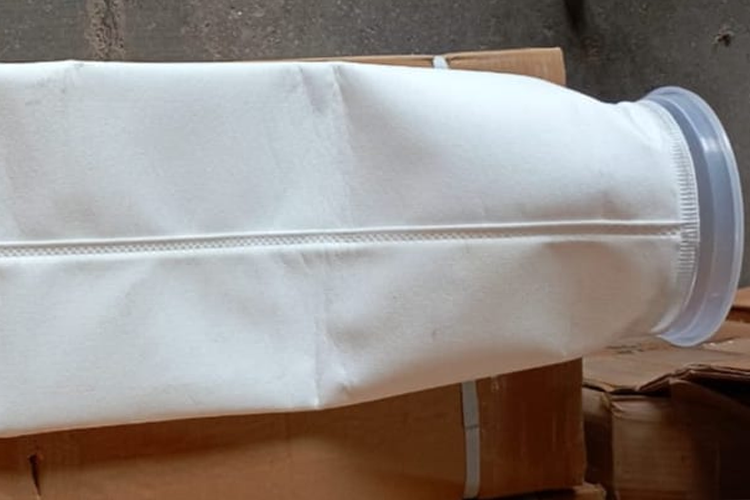

Micron Filter Bag / Moulded Filter Bag

Abhijyot Filters Is The Leading Manufacturer, Supplier, Wholesaler, Dealer And Exporter, High-Performance Filter Bags

Abhijyot Filters manufactures high-performance Molded Filter Bags and Micron Filter Bags designed to deliver superior contaminant removal across a wide range of industrial applications. We are not just suppliers; we are your filtration partners, providing customized solutions that align with your exact process requirements, vessel specifications, and performance goals. Available in a variety of shapes and sizes, every bag we produce is engineered with meticulous attention to detail—ensuring maximum dirt-holding capacity, consistent filtration efficiency, and reliable sealing to prevent bypass. Our commitment to quality guarantees that our products safeguard your valuable equipment and maintain the integrity of your final product.

What Are Molded & Micron Filter Bags?

Also known as industrial filtration bags, these disposable, pouch-like filters are designed to capture contaminants from liquids as they flow through. Recognized for their high dirt-holding capacity, filtration precision, and ease of use, they are typically placed inside a dedicated housing (called a bag filter vessel or bag filter housing). During operation, the liquid passes from the inside of the bag to the outside, effectively trapping particles within the filter media.

Common materials include :

Polypropylene (PP)
Nylon
Polyester (PES)
PTFE (Teflon)
HDPE
Nomex
Ryton
Cpa

Filtration Rating : Available from 1 to 400 microns (common ratings: 0.5, 1, 5, 10, 25, 50, 100, 150, 200, 300, 400 μm).

Style Available :

100% customized collar
PP collar / SS collar (3mm, 4mm, 5mm thickness)
V-shape bottom / U-shape bottom
Standard sizes : 7" x 32", 7" x 16", 7" x 64", 4" x 20"
Layers : Double layer (absolute), Single layer (nominal)

How They Work (The Process)

Collection: The filtered liquid exits the housing through the outlet port.
Installation: The used bag is removed, and a new, clean bag is inserted into the housing.
Contaminant Capture: Particles larger than the pore size of the media are trapped inside the bag.
Disposal: Once clogged, the bag is replaced with a new one.
Filtration: The liquid is pumped into the inlet of the housing and directed inside the bag.

Common Applications

Chemicals & Pharmaceuticals: Process chemicals, solvents, acids, caustics, intermediates.
Food & Beverage: Cooking oils, syrups, beverages, spirits, honey, ingredients.
Paints, Inks & Coatings: Removing agglomerates and contaminants.
Plastics: Filtering polymer melts, additives, plasticizers.
Electronics: Purifying ultra-pure water, process chemicals.
Metalworking & Coolants: Removing fines, tramp oil.
Pre-Filtration: Protecting cartridge or membrane filters.
Waste water, dyes & pigments, sugar industry, fertilizer, agrochemical.

Advantages of Using Molded & Micron Filter Bags

Cost-Effective : More economical compared to many alternative filtration methods.
High Dirt-Holding Capacity : Large surface area extends service life and reduces change-outs.
User-Friendly : Simple drop-in design makes installation and replacement quick and hassle-free.
Versatile : Available in multiple materials, micron ratings, and sizes to suit diverse applications.
Space-Efficient : Multi-bag housings support high flow rates while conserving floor space.
Disposable : Single-use design eliminates cleaning costs and reduces contamination risks.

Molded and Micron filter bags offer an efficient, economical, and practical solution for removing particulate contamination from a wide spectrum of industrial liquids. Their reliable performance, combined with ease of use and adaptability, makes them an indispensable part of modern manufacturing and processing operations.
